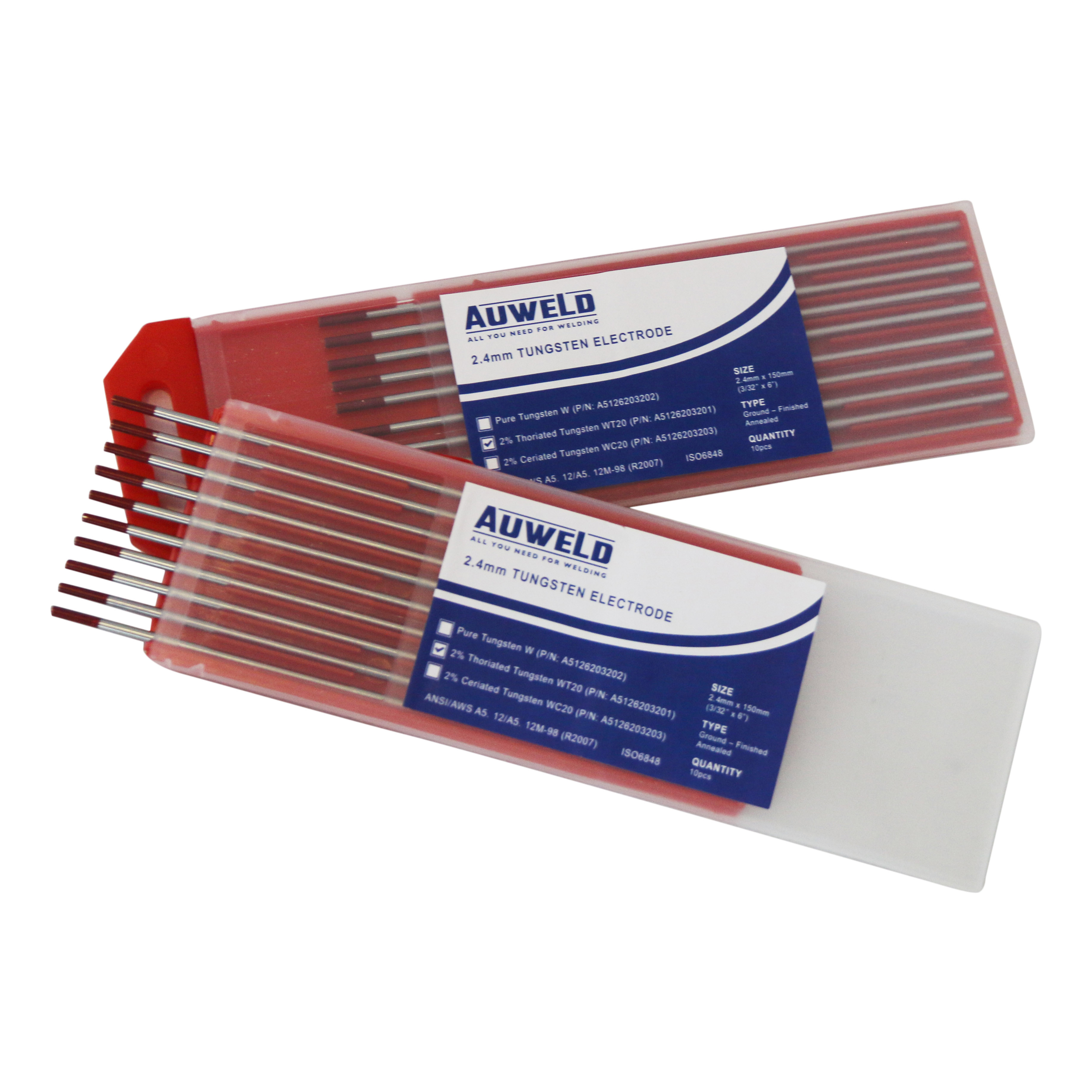

Tungsten Electrodes

Features

  • Easy arc
  • High current capacity
  • MSDS upon request
  • Electrodes are 100% eddy current tested
  • Increased resistance to weld pool contamination
  • Comes in packets of 10
Categories: ,

Specifications

Model Code Product Type Colour Application Alloying Element Materials Welded Specification (Diameter x Length mm)
53800416 2% Ceriated Grey DC & AC Application Cerium Carbon Steel, Stainless Steel, Nickel Alloy, Titanium 1.6 X 150
53800424 2.4 X 150
53800432 3.2 X 150
53800316 1.5% Lanthanated Gold DC & AC Application Lanthanum Carbon Steel, Stainless Steel, Nickel Alloy, Titanium 1.6 X 150
53800324 2.4 X 150
53800332 3.2 X 150
53800116 Pure Tungsten Green AC Application None Aluminium, Magnesium 1.6 X 150
53800124 2.4 X 150
53800132 3.2 X 150
53800216 2% Thoriated Red DC Application Thorium Carbon Steel, Stainless Steel, Nickel Alloy, Titanium, Copper 1.6 X 150
53800224 2.4 X 150
53800232 3.2 X 150
