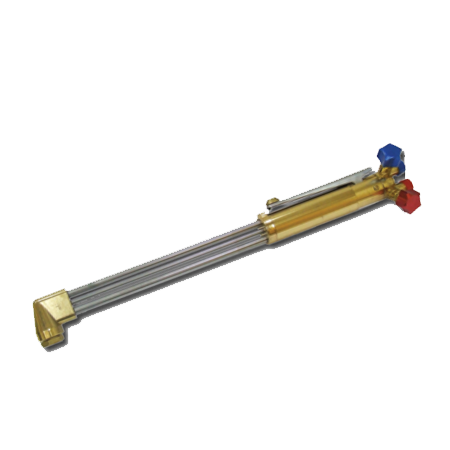

Gas Cutting Torch

Usage / Application

AUWELD heavy duty gas cutting torch are engineered from solid brass to provide a compact and well-balanced torch. All the torches are manufactured to meet the requirement of EN ISO 2503, making them reliable and safe for high quality cuts.

Construction

  • 90° Head angle
  • Rear mounted valves
  • Locking lever
  • Non-slip heavily ribbed handle
  • 3/8”BSP Hose connection

Features

Durable
Forged brass body provides durability and strength for reliable service. 3 stainless steel tubes keep the gases separated to be mixed safely at cutting tip, resulting in greater resistance to heat and backfire

Safe
Tip-mixing system assures operator’s safety and convenience in changing gases by tip changing

Convenient
Wear-and-tear parts easily replaceable

Easy-to-use
User-friendly control knobs ensures a positive flame adjustment

Versatile
Compatible with AUWELD ANME/ PNME gas cutting nozzles and circle attachments

Specifications

PRODUCT NO. MODEL CUTTING CAPACITY (mm) WEIGHT (gm) LENGTH (mm)
300000001 Medium Duty 2.5 – 200 1000 490
301000001 Heavy Duty 2.5 – 300 1100 500
