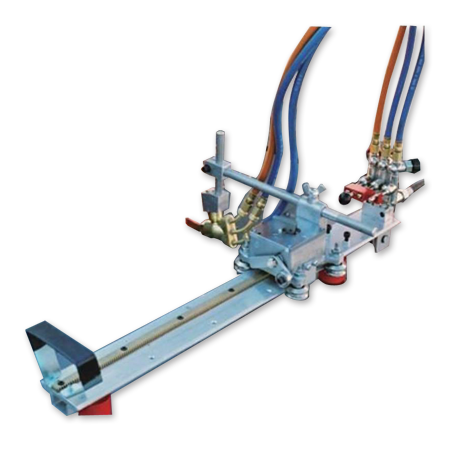

Suspended Lug Cutter (AW-05)

Usage / Application

AUWELD AW-05 suspended lug cutter works automatically and is able to provide precision and better quality cutting surfaces: Your ideal tool in the ship-building and bridge construction industries.

Main Parameters

Features

  • Comes with light aluminum rail and powerful magnetic clamp for mounting stability
  • Spring drive method requires no electricity
  • A more perpendicular cutting face can be obtained compared to manual cutting, thus reducing amount of labor needed in the final grinding process
  • Constant cutting feed rate of 400mm/min
  • Preset valve eliminates repetitive gas valve adjustments of the preheat flame
  • Various plate thicknesses can be cut using constant speed though preheat flame
  • Exclusive curved cutting nozzles allows extremely close cutting to the work piece
PRODUCT NO. MODEL DIMENSION (mm) CUTTING THICKNESS (mm) CUTTING SPEED (mm/min) WEIGHT (kg)
351205000 AW-05 360 x 710 x 233 6-30 400
(Constant)
9.5
