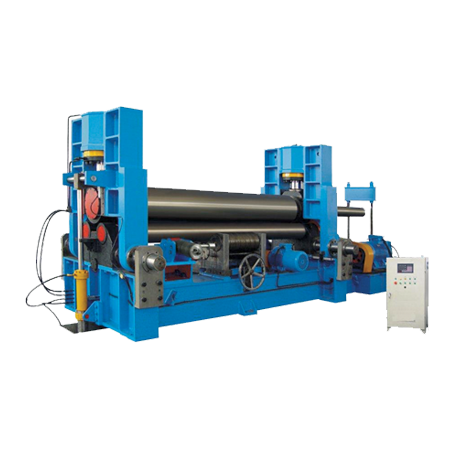

AW11SC Upper Roller Multi-Function 3-roller Rolling Machine

Features

  • High precision end pre-bending: The straight edge length can be set freely, while the upper roller press to pre-bend.
  • NC control, high productivity.
  • Good accuracy: Upper roller like drum, lower rollers assorted with it through support roller. Able to bend continuously and roll ideal products from thin to thick plate widely.
  • Safety: Fixed lower rollers with moveable upper roller. Jobs do not move with the working rollers.
  • Complete structure, simple foundation, convenient move: Machine has unitary basement, which does not require earth bolts.
  • Plenty of bending shapes: Able to roll shapes of O (backside roll way), U (front side roll way), several R (combined way), taper in certain range.
Category:

Specifications

Model

Pressure of Upper Roller (tons)

 Max Thickness Max Width (mm) Plate Yield Limit (MPa) Max Spec Min Bending Diameter (mm) Dia. of Upper Roller (mm) Dia. of Lower Roller (mm) Center Distance of Lower Roller (mm) Rolling Speed (m/min) Main Motor Power (kW)
End (mm) Middle (mm)
AW11SC-15×2000 75 12 15 2,000 245 600 255 150 245 4 7.5
AW11SC-20×2000 100 16 20 2,000 245 800 320 180 300 4 15
AW11SC-20×2500 160 16 20 2,500 245 800 330 180 300 4 15
AW11SC-20×3000 200 16 20 3,000 245 1,000 375 200 330 4 22
AW11SC-25×2500 190 20 25 2,500 245 900 380 220 360 4 22
AW11SC-25×4000 270 20 25 245 245 1,400 490 250 400 4 30
AW11SC-30×2500 240 25 30 2,500 245 1,100 430 235 380 4 30
AW11SC-30×3000 320 25 30 3,000 245 1,200 480 260 420 4 37
AW11SC-30×4000 380 25 30 4,000 245 1,400 550 275 460 4 45
AW11SC-40×2500 380 32 40 2,500 245 1,400 520 290 500 4 55
AW11SC-40×3000 430 30 40 3,000 245 1,600 560 290 500 4 55
AW11SC-40×4000 540 30 40 4,000 245 2,000 630 340 610 3.5 75
AW11SC-45×4000 610 35 45 4,000 245 2,000 660 360 650 3.5 75
AW11SC-50×4000 690 40 50 4,000 245 2,000 700 380 700 3.5 75
AW11SC-60×3000 690 50 60 3,000 245 2,000 700 410 700 3.5 90
AW11SC-70×3000 850 60 70 3,000 245 2,200 740 420 780 3.5 90
