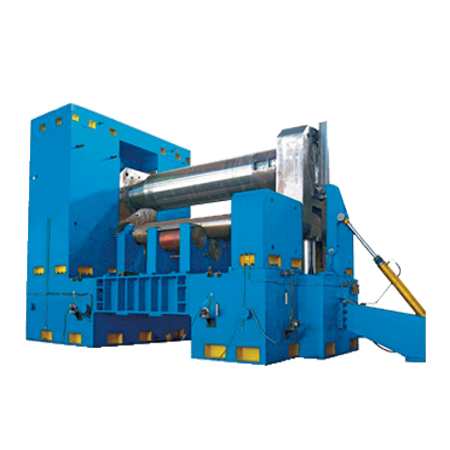

AW11XC Horizontal Down Roller Adjust 3-roller Rolling Machine

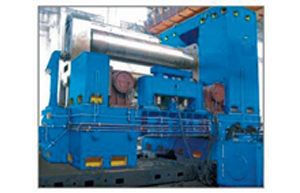

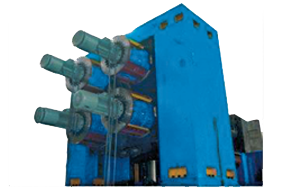

W11XNC Horizontal Down Roller Adjust 3-roller Rolling Machine_2 W11XNC Horizontal Down Roller Adjust 3-roller_3

Features

  • Upper roller can move vertically, while lower rollers can move horizontally.
  • Has double function of pre-bending and roll.
  • The three rollers have brake devices installed while revolving, thus ensuring precise position and safe operation while rolling.
  • Upper roller able to tilt to one end and both ends of upper roller are able to move up and down simultaneously when it’s tilted.
  • Multi-driver in upper driver to reduce occupying area of the equipment.

Specifications

Model

Max Thickness of Rolling Plate (mm)

Max Pre-bending Thickness (mm) Max Width of Rolling Plate (mm) Plate Yield Limit (MPa) Max Spec Min Bending Diameter (mm) Dia. of Upper Roller (mm)
Dia. of Lower Roller (mm) Dia. of Support Roller (mm) Center Distance of Lower Roller (mm) Rolling Speed (m/min) Main Motor Power (kW)
AW11XC-

100×3000

100 85 3,000 245 2,800 900 680 1,000 3 4 x 22
AW11XC-

100×4000

100 85 4,000 245 3,500 980 500 500 1,050 3 4 x 30
AW11XC-

120×3000

120 100 3,000 245 3,000 950 720 1,050 3 4 x 30
AW11XC-

120×4000

120 100 4,000 245 4,000 1,020 550 550 1,050 3 4 x 30
AW11XC-

140×3500

140 120 3,500 245 3,500 1,020 520 550 1,100 3 4 x 30
AW11XC-

140×4000

140 120 4,000 245 4,000 1,100 600 650 1,200 3 4 x 45
AW11XC-

160×4000

160 140 4,000 245 4,000 1,280 650 650 1,350 3 4 x 55
AW11XC-

180×4000

180 160 4,000 245 4,000 1,350 1,100 1,560 2.5 4 x 55
