BLUEMIG S6

BlueMig S6 Product Data Sheet

CLASSIFICATION
AWS A5.18 ER70S-6
JIS Z3312 YGW12
APPROVAL
American Bureau of Shipping 3SA 3YSA

Description and Applications

BLUEMIG S6 is a copper coated, low carbon steel GMAW wire, specially formulated for optimum performance under welding grade CO2 and higher CO2 mixed gases. Arc transfer characteristics are excellent with Argon based gas mixtures, particularly in spray and pulsed modes of transfer. The high quality copper, coating of BLUEMIG S6 ensures smooth and stable feeding, good electrical contact and low tip wear.

BLUEMIG S6 is suitable for a wide range of welding applications on mild and medium strength steels. It is ideal for positional, single pass welding of sheet steel and steel pipes / tubes where the high silicon content promotes smooth even weld beads with excellent wedge wetting and contour.

Shielding Gas

Type of Gas : 100% CO2 or 80% Argon + 20% CO2
Flow rate : 12 – 20 (litre/min)

TYPICAL ALL WELD METAL COMPOSITION (Wt %)
C
0.10
Mn
1.45
Si
0.88
P
0.012
S
0.014
TYPICAL ALL WELD MECHANICAL PROPERTIES
YIELD STRESS
460 N/mm²
TENSILE STRESS
560 N/mm²
ELONGATION
28%
CVN IMPACT VALUES
80J@ -20°C
OPERATIONAL AND PACKAGING DATA
ELECTRODE SIZE (mm) WELDING CURRENT
RANGE • (amps)
ARC
VOLTAGE (v)
WIRE SPEED (m/min) DEPOSITION RATE
(kg wm/hr)
PACKAGING CTN
(kg)
0.8 60 – 90 14 – 22 4 – 17 1.0 – 4.0 15
1.0 100 – 290 16 – 29 4 – 16 1.5 – 5.5 15
1.2 120 – 350 16 – 32 3 – 15 1.5 – 7.0 15
1.6 160 – 390 18 – 34 3 – 15 1.5 – 8.0 15

Welding Current : DCEP

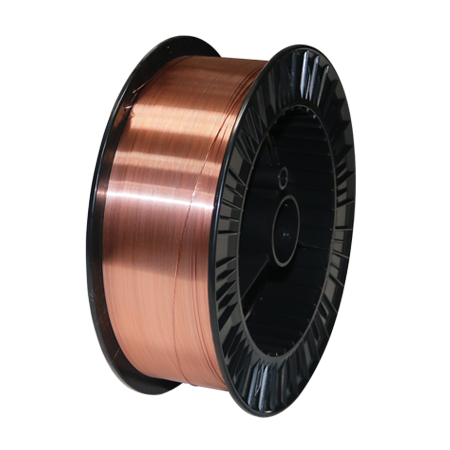

BLUEMIG S6 is available in a multitude of spool types and sizes including 15kg, 18kg and 20kg plastic spools. Popular 0.8mm, 1.0mm, 1.2mm and 1.6mm sizes are available on both precision layer wound (PLW) and random wound (RW) 15kg, 18kg and 20kg plastic spools.

• WELDING POSITIONS :
