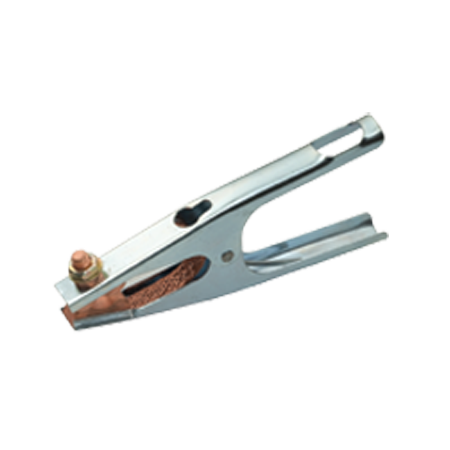

Earth Clamp (AW200EC / 300EC / 500EC)

Features

  • Large contact area assures positive grounding
  • Braided shunt allows both copper alloy jaws to carry welding current
  • Unique design helps eliminate arc blow
  • Large hex screw cable connection assures secured connection
Categories: ,

Main Parameters

Specifications

PRODUCT NO. MODEL AMPERES CAPACITY/
ACTUAL SETTING ON MACHINE
WELDING CABLE CABLE CONNECTION  JAWS CAPACITY  WEIGHT LENGTH
260320001 AW200EC Max. 200 Max. 35mm² Bolt and Nut
with Support
51mm 400g 241mm
260330001 AW300EC Max. 300 Max. 50mm² Bolt and Nut
with Support
51mm 480g 241mm
260350001 AW500EC Max. 500 Max. 70mm² Bolt and Nut
with Support
51mm 568g 241mm
