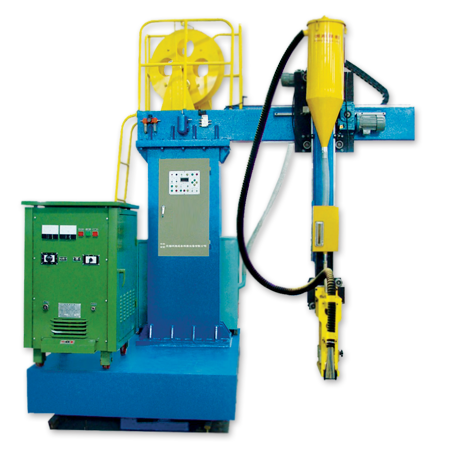

Cantilever Welding Machine
Features
- XBH type column-beam welding machine adopts the imported AC transducer.
- Three-spindle tracking systems in the tracking arc-guide mechanism ensure the alignment such that it is not bias on the weld.
- Able to perform integrated interlocking and the equipment is provided with auto flux-recovery system.
Specifications
| Type | AWCW |
|---|---|
| Height of Web (mm) | 200-2,000 |
| Width of Flange (mm) | 200-800 |
| Length of H-beam (mm) | 4,000-15,000 |
| Welding Machine | MZ-1-1000 Auto submerged / Auto union melt welder |
| Welding Mode | Ship-welding |
| Welding Velocity (m/min) | 0.3-1.5 |
| Reverse Velocity (m/min) | 3 |
| Track Distance (mm) | 1,150 |
| Power of Assembling Machine (kW) | 7,500 x 2,000 x 3,120 |
