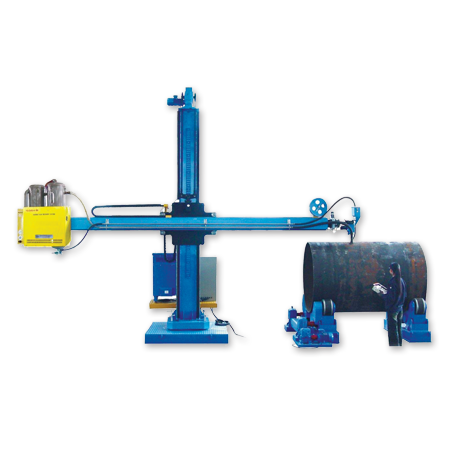

Longitudinal Welding Center

Features

  • Composed of welding manipulator, rotator and SAW welder.
  • Widely used for petrol chemistry, pipe welding, shipbuilding, metallurgy and boiler industries.

Specifications

Type Heavy-Duty Medium-Duty Light-Duty
  8 x 8     5 x 6     4 x 5    3.5 x 5    3 x 4
Effective Stroke of Vertical Boom (mm) 8,000 5,000 4,000 3,500 3,000 2 x 2
Effective Stroke of Cross Boom (mm) 6,000 6,000 5,000 5,000 4,000 2,000
Suitable Diameter of Cylinder (mm) 1,000-8,000 1,000-5,000 1,000-4,000 700-3,500 700-3,000 500-2,000
Vertical Boom Rotating Angle ±180° ±180° ±180° ±180° ±180° ±180° (manual)
Cross Boom Up and Down Speed (m/min) 0.9 1 1 1 1 0.3
Cross Boom Expansion Speed (m/min) 0.12-1.2 0.12-1.2 0.12- 1.2 0.12-1.2 0.12-1.2 0.12-1.2
Trolley Forward and Backward Speed (m/min) 1.5 1.5 1.5 1.5 1.5 1.5
Trolley Track Center Distance (mm) 2,308 1,780 1,780 1,780 1,500 900
