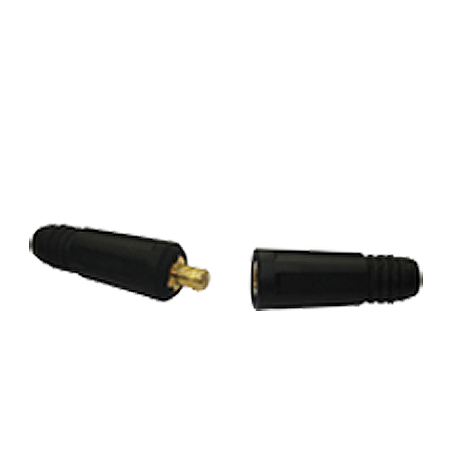

Dinse Type Cable Connector (AW200DC / 300DC / 500DC)

Auweld DINSE TYPE cable connectors come with Allen Key, Zinc-plated Cover and Cable Screws.

FEATURES

  • Positive cam-lock style assures precision connecting and locking
  • Precision-machined from extruded brass
  • Has no metal liners that are susceptible to rust and corrosion
  • Current insulating material is heat, oil and abrasion-resistant
Categories: ,

Specifications

PRODUCT NO. MODEL AMPERAGE CAPACITY WELDING CABLE CABLE CONNECTION  WEIGHT LENGTH
260320041 AW200DC Max. 200 Max. 35mm² Double
Round-point Screw		 350g 200mm
260330041 AW300DC Max. 300 Max. 50mm² Double
Round-point Screw		 550g 292mm
260350041 AW500DC Max. 500 Max. 70mm² Double
Round-point Screw		 550g 292mm
