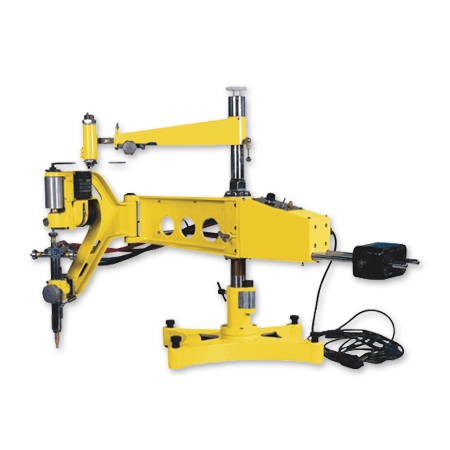

Profiling Gas Cutter (AW54-04)

Usage / Application

AUWELD AW54-04 profiling gas cutter is an advanced magnetic shape – tracing cutter with high accuracy. It is able to continuously produce consistent and precise flame cuts by following a steel template and is highly recommended for applications in metal fabrication industries and machinery plants.

Main Parameters

Features

  • Solid aluminum arms eliminate vibration during cutting to produce quality cuts
  • Powerful magnetic roller guides cutting torch around any shapes smoothly
  • A Silicon Controlled Rectifier (SCR) control system is adopted to ensure stable cutting and allow a wider range of speed
  • Automatic switch allows simultaneous triggering of the meter and supply of oxygen
  • Tips can be easily cleaned, replaced and adjusted
  • Optional roller with various diameters of 8, 15, 20mm are available to obtain cuts of different sizes with the same template
PRODUCT NO. MODEL DIMENSION (mm) CUTTING THICKNESS (mm) CUTTING SPEED (mm/min) CUTTING RANGE FOR CIRCLE (mm) CUTTING RANGE FOR SQUARE (mm) DIAMETER OF MAGNETIC WHEEL (mm) WEIGHT (kg)
351654040 AW54-04 1200 X 420 X 700 3-100 100-1000 30-700 30-600 10 50
