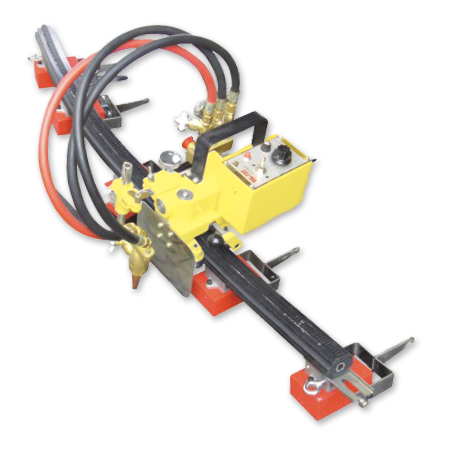

Automatic All-Position Cutting Machine (AW72T)

Usage / Application

AUWELD AW72T all-position portable cutting machine is the best equipment for cutting different types of angled steel such as profiled bar, boilers, curved plates, pipes, tanks, ships, vessels and domes.

Main Parameters

Features

  • Main body is made of robust and high strength aluminum alloy
  • Angle gauge enables torch to turn for beveling
  • Permanent magnet attached with clutch unit to secure flexible rubber track on work piece
  • Rail is made of hard compound rubber for 3-D and/or 2-D curve cutting. Rubber rail has internal flexible core to avoid uneven cutting due to wear and tear of rail
  • Comes with 1m 3-D rubber rail; extendable rail available for purchase for larger jobs
  • Enables high precision cutting of 3-D curved structures
PRODUCT NO. MODEL DIMENSION (mm) CUTTING THICKNESS (mm) CUTTING SPEED (mm/min) MIN. CURVE RADIUS (mm) WEIGHT (kg)
350172200 AW72T 190 X 195 X 140 6-30 100-700 2000 11
