LMXVIIZ 6 kW CO2 LASER Bevel Cutting Machine

High-quality powerful laser capable of high-output and long operation!

Establishing 6 kW high output and long continuous operation. Achieving also labor saving, space saving and excellent operability and maintenance performance.

This model mounts the beveling device having the automatic angle setting until ±45° and swiveling function. As an alternative to plasma cutting, improved accuracy, reduction in secondary processing, improvement in work environment and so on are available.

Features

• Great reduction in maintenance
The cleaning interval is made twice or more (to the TANAKA existing model), by enhancing the dust-proof performance of the optical path. Also, beam axis deviation is made minimum to lighten the work burden in nozzle centering.

• Automating correction function
Correction of height sensor standoff control in scheduled operation and correction of oscillator (once a day) are made automatic, achieving laborsaving.

• Reduction in installation space
Reducing the installation space and power consumption by employing a new chiller, enabling more flexible layout.

• Calm body motion
Achieving miniaturization and lightweight, silent and smooth machine body traveling by employing a new gearbox and dispensing with oil change and internal adjustment of the gearbox.

• Simplified nozzle surrounding
The torch surrounding has simple configuration by making the shield gas tubes built-in.

• Motorized turn mirror
The turn mirroring the optical path length fixing system is driven by an NC control, achieving precision motion.

• Improved operability
The operation panel can be changed in inclination. Limited number of switches are arranged on the panel, securing excellent operability.

• Reduced running cost
Power consumption and laser gas consumption are reduced by 10% and 50%, respectively compared with conventional ones (TANAKA machine).

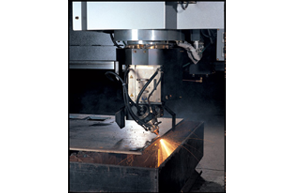

LMXVIIZ 6 kW CO2 LASER Bevel Cutting Machine_2
Bevel Setting Angle 0~±45
Swiveling Angle Infinite swiveling
Special Cutting Method Profile beveling cutting
Bevel angle change during cutting
Gentle curve cutting with beveling

Specifications

Model LMXVIIZ25 LMXVIIZ30 LMXVIIZ35 LMXVIIZ40 LMXVIIZ45 LMXVIIZ50
Effective Cutting Width (mm) 2,500 3,000 3,500 4,000 4,500 5,000
Rail Span (mm) 4,300 4,800 5,300 5,800 6,500 7,000
Rail Length (mm) Extendable by 1,200 mm
Rail Size 50 kg/m rail
Effective Cutting Length (mm) Effective cutting length+5,300
Mounting Laser Oscillator TF6000 CO2 gas laser oscillator (Rated output: 6 kW)
NC System FANUC Series-30iLB
Z-axis Stroke (mm) 200
Machine Overall Length (mm) 5,075
Machine Overall Width (mm) Rail span + 1,081
Machine Overall Height (mm) 1,670

Cutting Specification (Possible Plate Thickness)

Mild Steel (Black Skin) Vertical Cutting 25 mm
Top/bottom V bevel 30° 16 mm
Top/bottom V bevel 45° 12 mm
Stainless Steel 12 mm

*The above is in case of cutting our standard materials.
