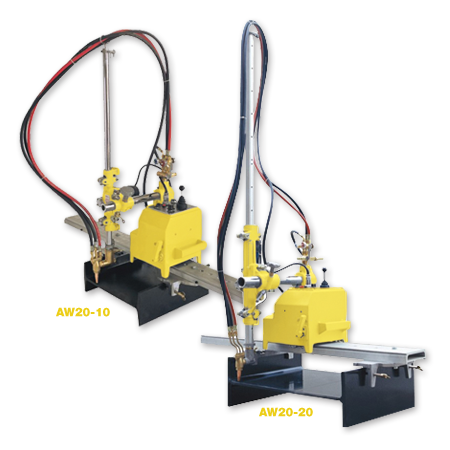

H-Beam Cutter (AW20-10 / AW20-20)

Usage / Application

AUWELD AW20-10 regular duty and AW20-20 heavy duty semi automatic H-beam cutters are recommended for use in metal fabricators, machinery plants and shipyards.

Features

  • Main body is made of light but robust aluminum alloy
  • Rail and main unit is combined to reduce set up time
  • Pre-heating flame is set up only once; pilot flame can be left on till next operation to save time and gas
  • Suitable for straight-line, beveling and groove cutting of H and I beams
  • 4-Way jog direction control automates vertical and horizontal travel

Main Parameters

Specifications

PRODUCT NO. MODEL DIMENSION (mm) CUTTING WIDTH (mm) CUTTING THICKNESS (mm) CUTTING SPEED (mm/min) WEIGHT (kg)
350820100 AW20-10 250 X 176 X 260 150-800 6-60 50-750 30
350820200 AW20-20 400 X 340 X 440 150-1600 6-60 50-750 37.5
