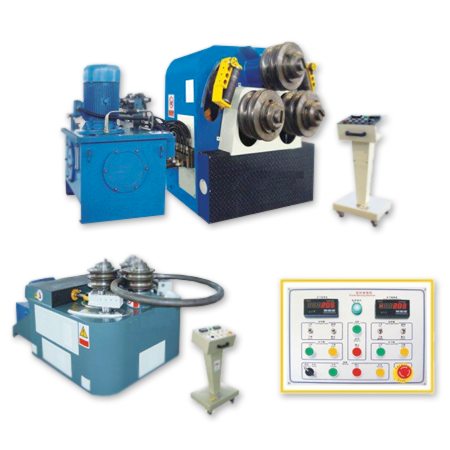

Features
- 2 lower rollers enable to elevate around the fixed axis, bend and rectify all kinds of profile by feeding once.
- 3 rollers are driving-roller, which can prevent skidding while bending profile with thin wall and big section.
- Support rollers and rotating device make it convenient to bend unsymmetrical profile.
- Comprises of digital display, convenient operation and high efficiency
Specifications
| Model |
AWJ-50S
| AWJW-159S
|
| Max Section Modulus of Elasticity (cm³) |
6 |
100 |
| Profile Yield Limit (MPa) |
|
| Size of Workpiece |
Max Section |
42 x 3 |
159 x 5 |
| Min Bending Dia. |
500 |
1,600 |
| Min Section |
14 x 2 |
28 x 2.3 |
| Min Bending Dia. |
280 |
650 |
| Angle Iron Incurvature |
Max Section |
45 x 45 x 5 |
110 x 110 x 14 |
| Min Bending Dia. |
700 |
1,600 |
| Min Section |
20 x 20 x 3 |
40 x 40 x 4 |
| Min Bending Dia. |
400 |
800 |
| Angle Iron Excurvature |
Max Section |
50 x 50 x 6 |
120 x 120 x 16 |
| Min Bending Dia. |
700 |
4,200 |
| Min Section |
20 x 20 x 3 |
40 x 40 x 4 |
| Min Bending Dia. |
400 |
600 |
| Channel Steel Incurvature |
Model |
5 |
22 |
| Min Bending Dia. |
560 |
1,500 |
| Channel Steel Excurvature |
Model |
8 |
22 |
| Min Bending Dia. |
500 |
1,400 |
| Flat Steel Bend in Ease Way |
Max Section |
100 x 18 |
250 x 40 |
| Min Bending Dia. |
500 |
1,200 |
| Flat Steel Bend in Hard Way |
Max Section |
50 x 12 |
120 x 40 |
| Min Bending Dia. |
500 |
1,200 |
| Round Steel |
Max Section |
30 |
90 |
| Min Bending Dia. |
340 |
1,000 |
| Dia. of Standard Module (mm) |
220 |
460 |
| Rolling Speed (m/min) |
5.5 |
4.5 |
| Main Motor Power (kW) |
3 |
15 |
