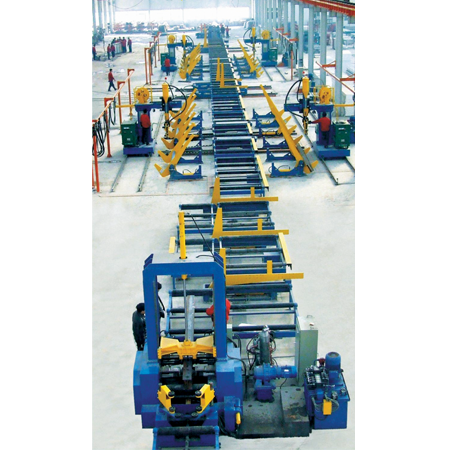

Vertical Assembly Machine


  • Equipped with flange, web fastening, calibrating, positioning and auto spot welding, all of which accept the Japanese Mitsubishi programmable controller and the AC frequency converter.
  • Welding gun is equipped with the arc-tracing device to ensure the quality of spot welding.


Web of Size Height (mm) 200-2,000
Thickness (mm) 6-32
Length (mm) 6,000-15,000
Type Height (mm) 200-800
Thickness (mm) 6-24
Length (mm) 6,000-15,000
Assembling Speed (m/min) 0.5-6
Machine Power (kW) 16.5 (Excluding 2 welding machine)
