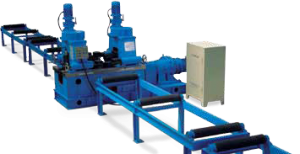

H-Beam Flange Straightening Machine

Features

  • For leveling the deformed H-beam during welding.
Category:

Specifications

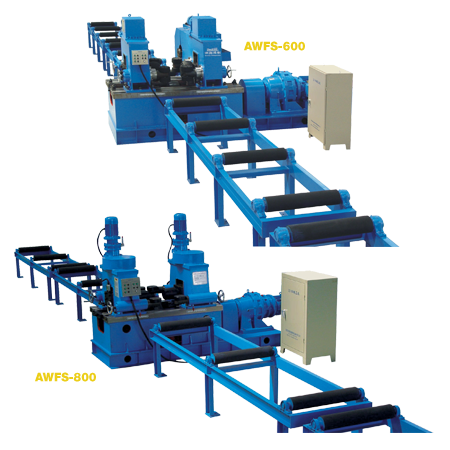

Model AWFS-600 AWFS-800
Width of Flange (mm) 150-600  200-800
Thickness of Flange (mm)  ≤ 20  ≤ 40
Min Height of Web (mm)  160  350
Material  Q 235-A Q 235-A
Straightening Speed (m/min)  8.5 18
Machine Power (kW)  6.6 24.2
