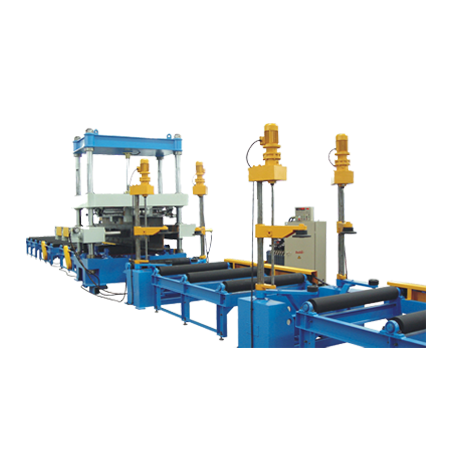

Star Beam Assembly Machine

Features

  • To assemble H-beam and T-beam to be star beam.
  • Adopts frequency speed adjust mode to control assembling speed through hydraulic system to position and clamp workpiece.
  • Adopts encoder and digital display to inspect and set up positioning size, and does not spot welding with manual welding mode.

Specifications

Web Plate Height
(mm)
Web Plate Thickness
(mm)
Flange Plate Width
(mm)
Flange Plate Thickness
(mm)
Assembling Speed (m/min) Machine Power (kW)
200-1,000 12-60 200-800 12-70 0.5-6 4,000-15,000
