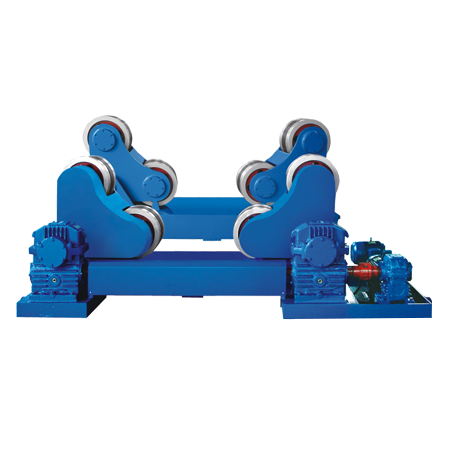

100T Self-Aligned Welding Rotator

Features

  • Suitable for different diameter jobs in the range with stepless speed adjust, low noise transmission and stable turning under welding parameter range.
  • Use to weld metal cylinder especially for pressure vessel.

Specifications

Type Max Load Weight (kg) Range of Suitable Workpiece (mm) Wheel (D x W) (mm) Wheel Linear Speed (m/h) Power of Motor Way of Setting
Rubber Rollers Metal Rollers
AWZT-5 5,000 Ø 250-Ø 2,300 Ø 260 x 100 2 x Ø 240 x 20 6-60 0.75 AC Converter stepless speed adjust or electromagnetic speed adjust
AWZT-10 10,000 Ø 320-Ø 2,800 Ø 300 x 120 2 x Ø 290 x 25 6-60 1.5
AWZT-20 20,000 Ø 500-Ø 3,500 Ø 350 x 120 2 x Ø 340 x 30 6-60 2.2
AWZT-40 40,000 Ø 600-Ø 4,200 Ø 400 x 120 2 x Ø 390 x 40 6-60 3
AWZT-60 60,000 Ø 750-Ø 4,800 Ø 450 x 120 2 x Ø 440 x 50 6-60 4
AWZT-80 80,000 Ø 850-Ø 5,000 Ø 500 x 120 2 x Ø 490 x 60 6-60 4
AWZT-100 100,000 Ø 1,000-Ø 5,500 Ø 500 x 120 2 x Ø 490 x 70 6-60 5.5
AWZT-150 150,000 Ø 1,100-Ø 6000 Ø 600 x 280 6-60 7.5
AWZT-250 250,000 Ø 1,200-Ø 7,000 Ø 700 x 300 6-60 2 x 5.5
AWZT-500 500,000 Ø 1,800-Ø 8,000 Ø 850 x 350 6-60 2 x 7.5
