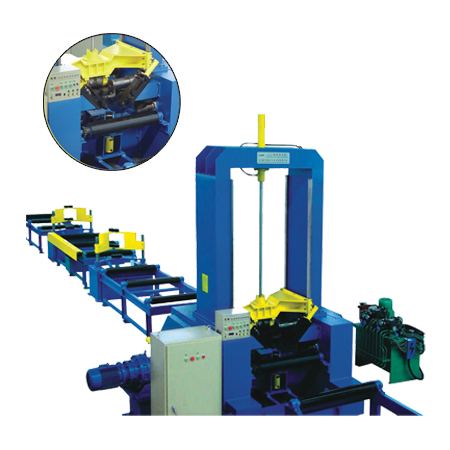

Vertical Assembly Machine for H-Beam

Features

  • Equipped with flange, web fastening, calibrating, positioning and auto spot welding, with Japanese Mitsubishi programmable controller and AC frequency converter to increase productivity.
  • Welding gun is equipped with arc-tracing device.
Size of the Web Size of the Flanges
Height (mm) Thickness (mm) Length (mm) Width (mm) Thickness (mm) Length (mm)
200-1,500 6-32 4,000-15,000 200-800 6-40 4,000-15,000
