Specifications
| Width of Applicable Box-beam (mm) | Height of Applicable Box-beam (mm) | Welding Speed (m/min) | Returning Speed (m/min) | Welding Position | Total Power (kW) |
|---|---|---|---|---|---|
| 300-1,200 | 300-1,200 | 0.17-3.4 | 6.8 | Horizontal welding | 9 |

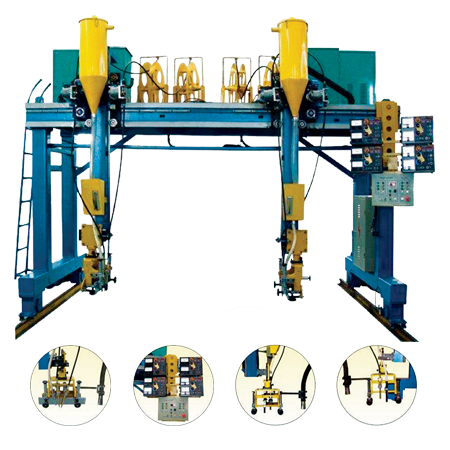

Gantry Type Box Beam Welding Machine Model AWBBW-4000
Features
- Welding supplementary machine design for boxbeam welding (flat angle welding seam).
- Uses gantry style main structure, driving in double sides, control the speed stepless by converter, uses mechanic guiding roller to trace welding seam.
- The up-down and left-right operation is controlled by pneumatic technology.
- Fixed frame is used to lay-out workpiece, which can be transmitted by roller such that it can be part of the assembly line with other sets of machines.
Triple wires with triple arc (2DC+AC)
Twin wires with twin arc (DC+AC)
Gate double thread gas shield welding padding machine
