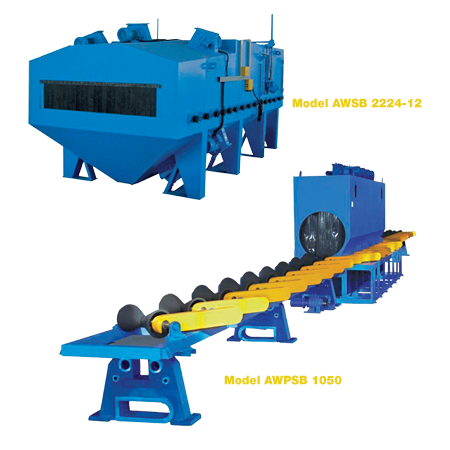

Sheet Shot Blasting Machine
Model AWSB 2224-12
Features
- To clean surface of steel sheet and small profile beams.
- Removed rust, dust, oxidized skin to increase the materials anti-wear strength.
- Widely used for chemical, shipyard, metal structures, steel products, rail vehicles, engineering machinery and bridge industry.
Specifications
| Model | AWSB 2224-12 | |
|---|---|---|
| Size of Workplace | Section (W x H) (mm) | 2,200 x 2,400 x 15,000 |
| Conveyor | Speed (m/min) | 0.5-5 |
| Power (kW) | 3 x 5.5 | |
| Model | Q034 II | |
| Shot Blaster | Shot Blasting Speed (m/s) | 65-70 |
| No x Unit Power (kW) | 12 x 11 | |
| Lifter | Power (kW) | 11 |
| Longitudinal Conveyor | Conveying Capacity (T/h) | 180 |
| Power (kW) | 4 + 5.5 | |
| Overal Power (kW) | 214 | |
| Feeding Conveyor | Conveying Capacity (T/h) | 180 |
| Power (kW) | 4 kW + 5.5 | |
| Dust Collection System | Model | LMF – II |
| Ventilation Capacity (m³/h) | 24,000 | |
| Centrifugal Ventilator | Model | 4-72-8C |
| Power (kW) | 22 | |
| Cleaning System | Ventilation Capacity (m³/h) | 5,000 |
| Power (kW) | 15 | |
| Overal Dimensions (L x D x H) (mm) | 9,750 x 3,600 x 4,580 | |
| Heigh Overground + Underground (mm) | 8,250 + 2,350 | |
Model AWPSB 1050
Features
- To clean small and medium size pipes.
- Workpiece rotates and runs automatically on the convey roller.• The running speed of the work piece can be adjusted according to surface quality requirements.
Specifications
| Model | AWPSB 1050 | |
|---|---|---|
| Specification | ≤ Ø 1050 | |
| Length (mm) | 3,000 – 12,000 | |
| Lengthways Screw Conveyer | Conveyor Capacity (T/h) | 50 |
| Power (kW) | 4 | |
| Total Power (kW) | 68 | |
| Standard of Dust Removal | Sa2-2.5 GB8923-88 | |
| Overall Dimensions (L x D x H) (mm) | 7,500 x 2,000 x 3,120 | |
