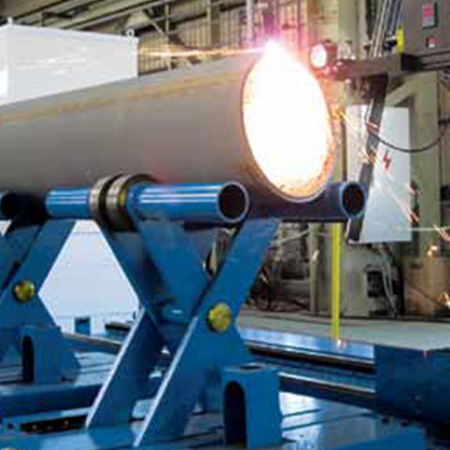

Auweld Pipe Profile Cutting Machine
Features
- Higher precision, repeatability and speed into pipe cutting application.
- Easy input of operating parameters through touch panel to calculate automatically complicated contour curves.
- User friendly data input interface via window
- CNC cutting process leave little margin for error especially in critical weld preparation angles
- Reduces excessive grinding work.
- 5-axis – Rotation of work-piece, lengthwise movement of cutter, rotational movement of cutter, tilt movement of cutter and height sensing.
Specifications
| Pipe Dia. (mm) | Pipe Size Range | ||||
|---|---|---|---|---|---|
| 34-406 | 60-610 | 76-1,016 | 165-1,372 | 267-1,524 | |
| Weight | 5-50 (Gas) 5-16 (Plasma) |
||||
| Control Axis | CNC 5-axis / 6-axis | ||||
| Torch Rail (mm) | 1000 / 3000 / 6000 / 9000 / 12000 / 15000 / 18000 | ||||
| Torch Travel Sys | Rack & Pinion | ||||
| Pipe Chuck | Motorised / Manual 4 / 5 Jaws scroll chuck | Hydraulic 3 jaws scroll chuck | |||
| Cutting Method | Gas / Plasma | ||||
| Options | Machine: Loading and unloading system / Marking | ||||
 |

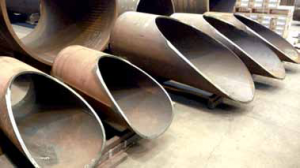

Applications
|
||||
