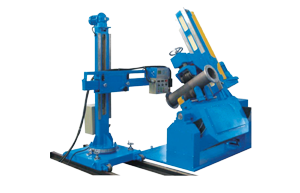

Short Pipe Flange Welding Centre
AWHQ Mini Manipulator
| Model | AWSPM-1 | AWSPM-2 |
|---|---|---|
| Effective Boon Elevating Stroke (mm) | 750 | 1,500 |
| Effective Boom Expansion Stroke (mm) | 450 | 900 |
| Elevating Speed (mm/min) | 400 | 400 |
| Expansion Way | Manual | Manual |
| Moving Carl Gauge (mm) | 600 | 600 |
Adjustable Positioner
| Model | AWP-10 |
|---|---|
| Load Capacity (kg) | 1,000 |
| Rotating Speed (RPM) | 0.12-1.2 |
| Overturning Speed (RPM) | 0.34 |
| Overturning Angle (°) | 0-120 |
Features
- Consists of raw material feeding frame, raw material auto feeding, roller auto conveyor, lifting and transferring roller, NC double shaft CNC flame/plasma cutting machine (including cutting elevating slewing roller and auto cutting cart), products auto output roller, products auto blanking roller, product blanking frame, GPK-630 type high speed beveling machine, hydraulic control part and electric control part.
- The pipe auto combination machine includes 1T adjustable positioner, cantilever welding machine, elevating support frame and electric control part for each machine.
 |

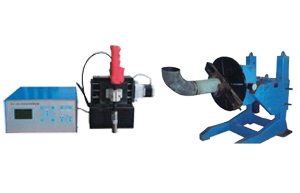

Welding Oscillator
| Model | AWOSC-3000 |
|---|---|
| Swing Range (mm) | ±25 |
| Frequency (times/min) | 0-120 |
| Left-Right Time Delay (s) | 0.2-2 |
 |
Adjustable Supporter
| Model | AWAS-1 |
|---|---|
| Load Capacity (kg) | 5,000 |
| Elevating Stroke (mm) | 280 |
Adjustable Positioner
| Model | AWP-10 |
|---|---|
| Load Capacity (kg) | 1,000 |
| Rotating Speed (RPM) | 0.12-1.2 |
| Overturning Speed (RPM) | 0.34 |
| Overturning Angle (°) | 0-120 |
 |

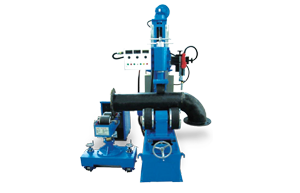

Pinch and Turning Rotator
| Model | AWSPM-1 | AWSPM-2 |
|---|---|---|
| Suitable Pipe Diameter (mm) | Ø 160-Ø 1,000 | Ø 60-Ø 600 |
| Load Capacity (kg) | 3,000 | 2,000 |
| Roller Linear Speed (mm/min) | 100-1,000 | 120-1,200 |
| Elevating Speed (mm/min) | 430 | 300 |

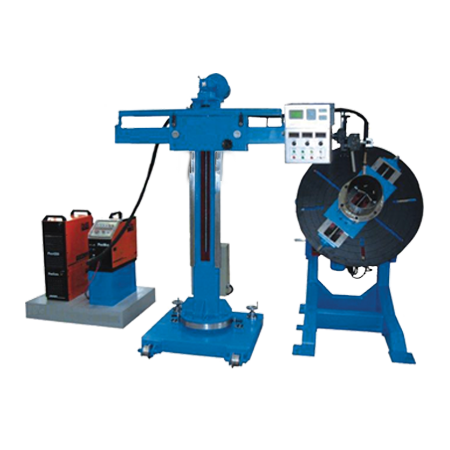

Short Pipe Auto Welding Combination
- Adjustable welding positioner
- Microminiature welding manipulator
- Welding Oscillator
- Kemmpi multi-function welder
Middle Pipe Auto Welding Combination
- Press rotary rotator
- Microminiature welding manipulator
- Conventional rotating support frame
- Welding oscillator
- Kemmpi multi-function welder
Long Pipe Auto Welding Combination
- Press rotary rotator
- Microminiature welding manipulator
- Welding oscillator
- Kemmpi multi-function welder
